Brief: Design a pre-fab mobile home as green as possible for $50 per square foot

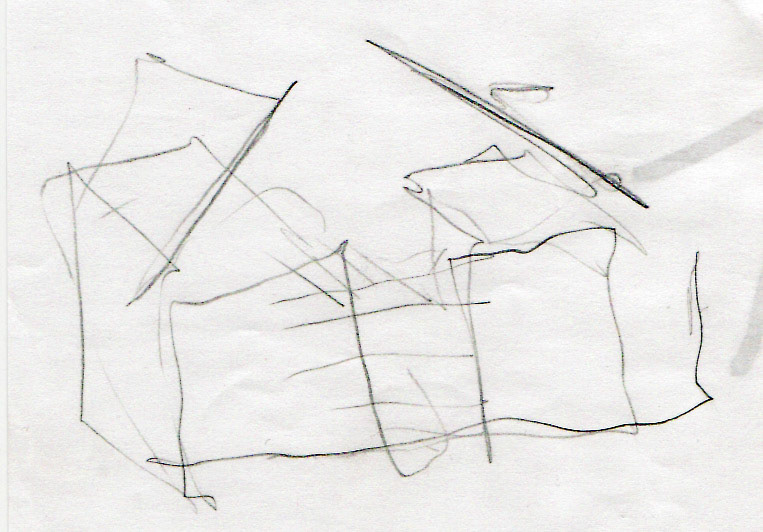

Concept sketch; two volumes, one for living the other for studio, separated by a patio shaded by solar panels
Matchbox concept model

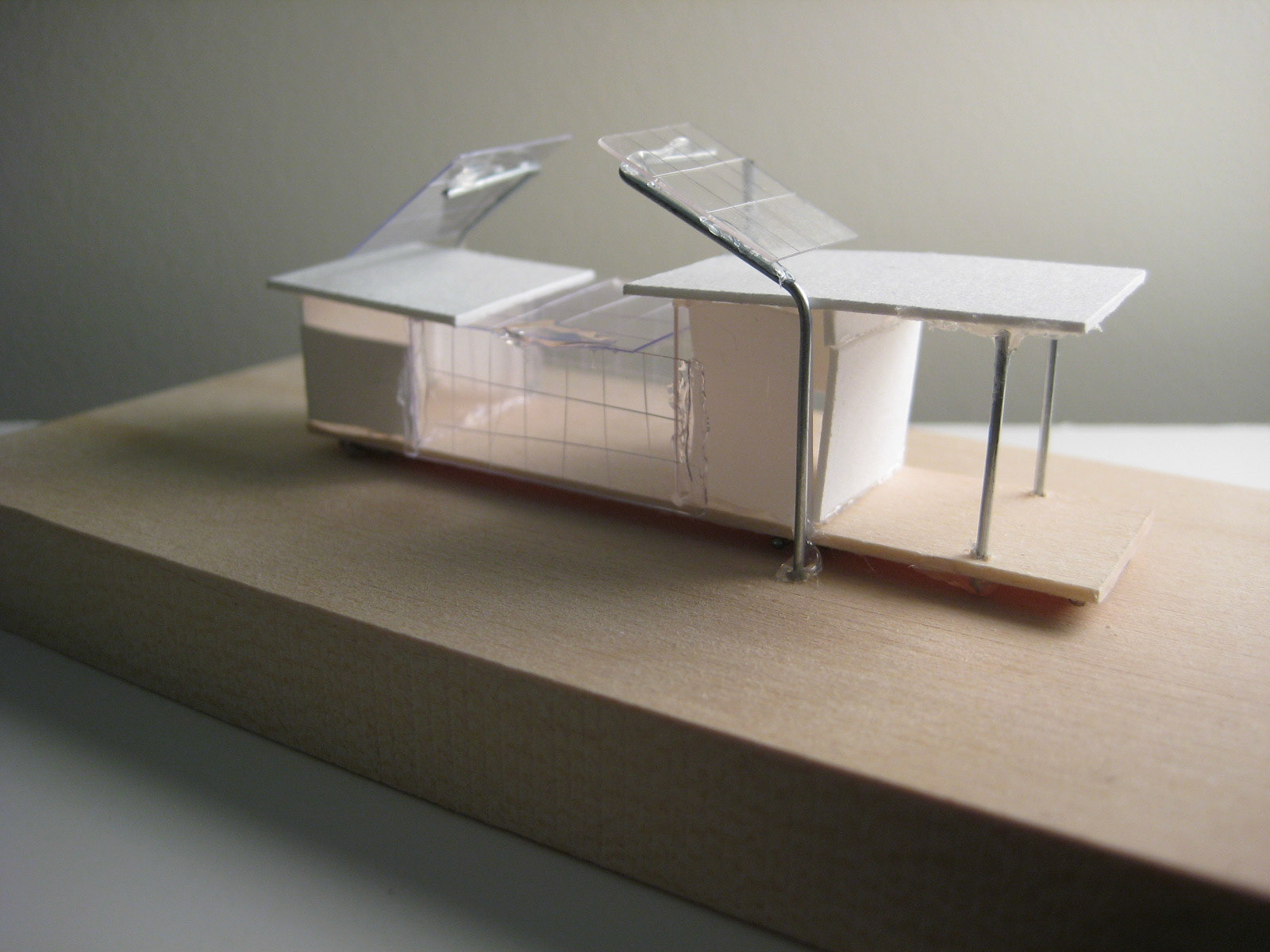

Study model, 1/8" = 1' - 0"

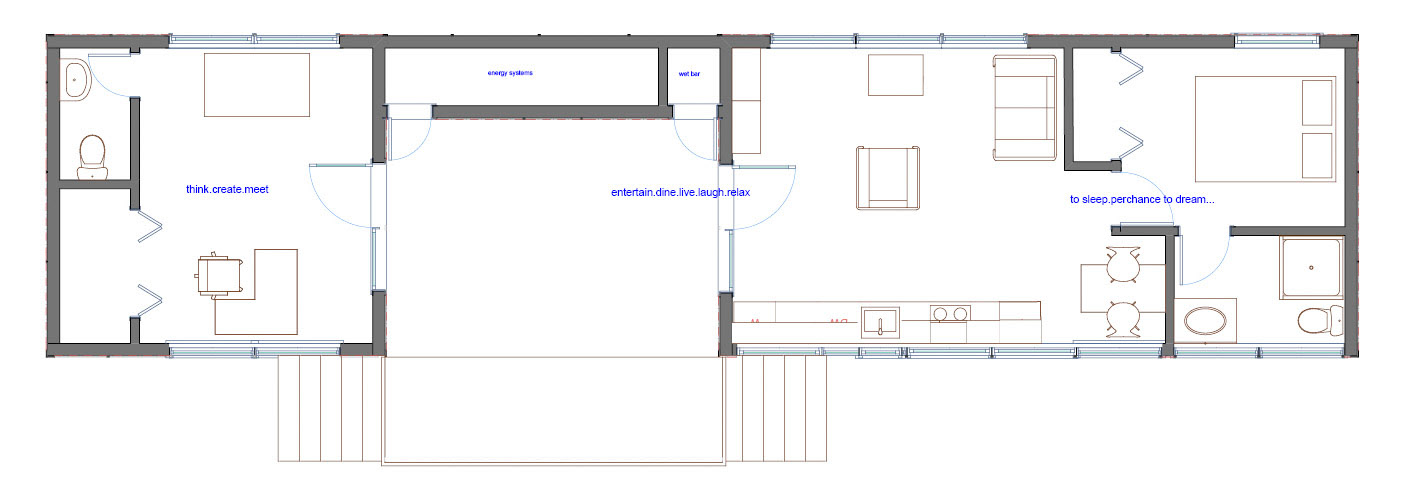

Floor plan; spaces are defined by activities, not by standard uses

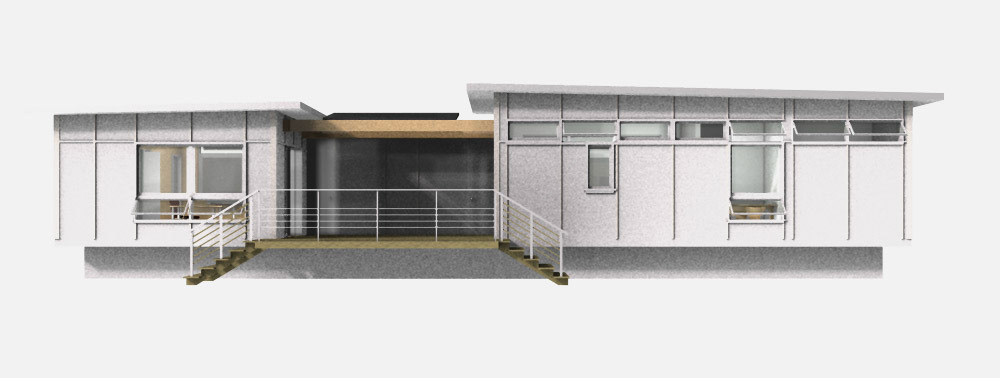

South elevation; house must be oriented this way to maximize solar gain. The skin is panelized with standard 4' x 8' panels for lower construction cost

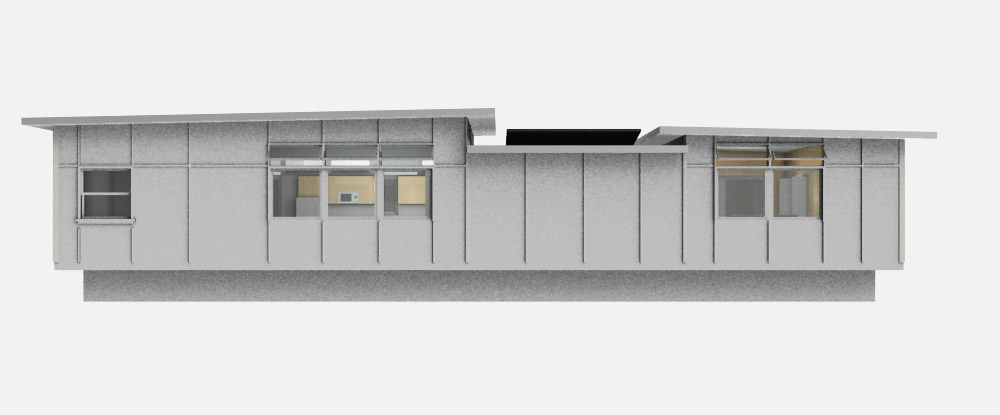

North elevation; windows are minimized for energy savings
Rendering of living space
Rendering of studio space

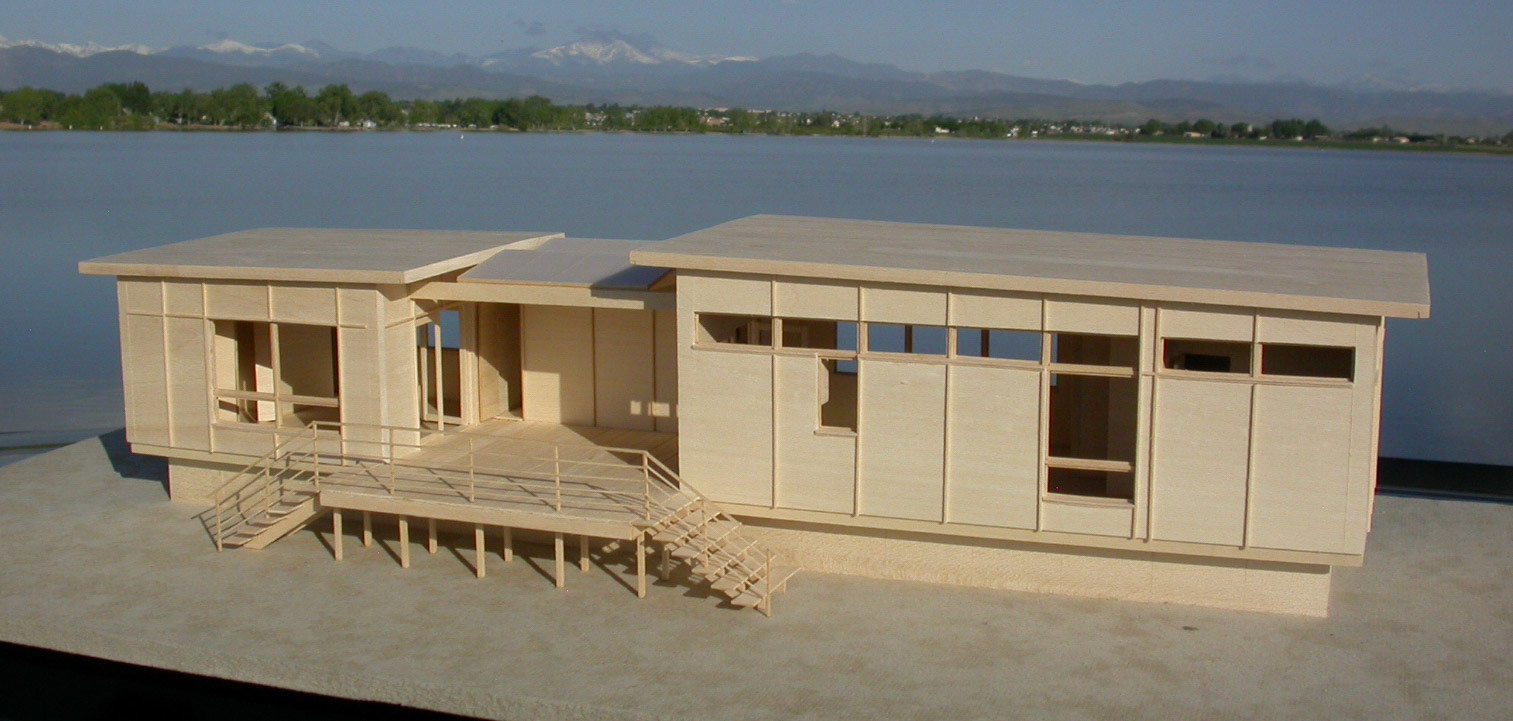

Presentation model, 3/8" = 1' - 0"; basswood on homosote board

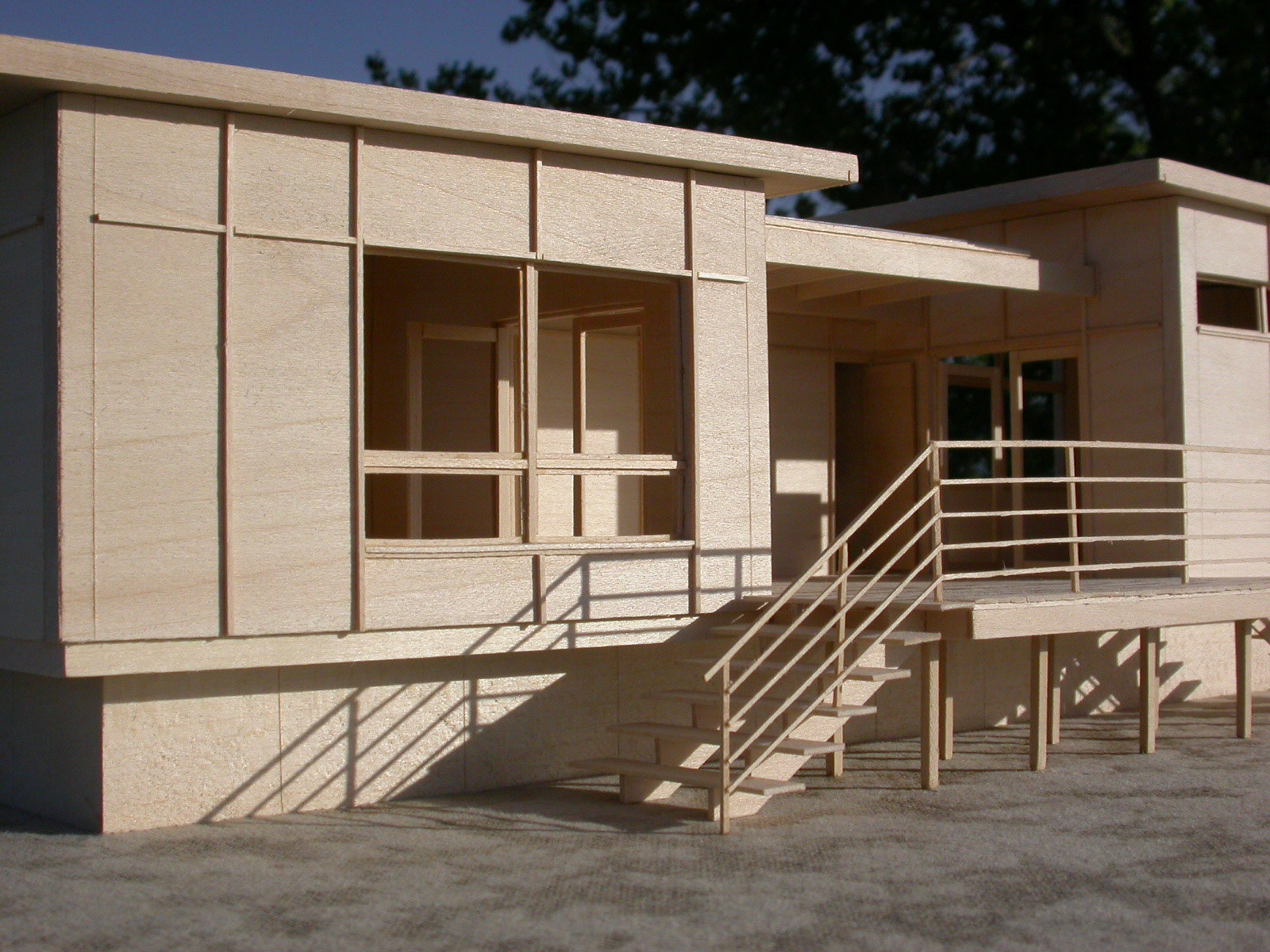

Presentation model detail
