Brief: Design a visitor's center for Mount Falcon Park in Jefferson County open space
All sheets are graphite on vellum, 24" x 36"
My proposal is a rammed-earth structure that is built into the hillside (partially earth sheltered for energy-efficiency) and has a quincunx of pine trees on the north to serve as a windbreak. The 19 separate roofs are reminiscent of the geologic uplifts in the area (such as Red Rocks Amphitheater to the east)

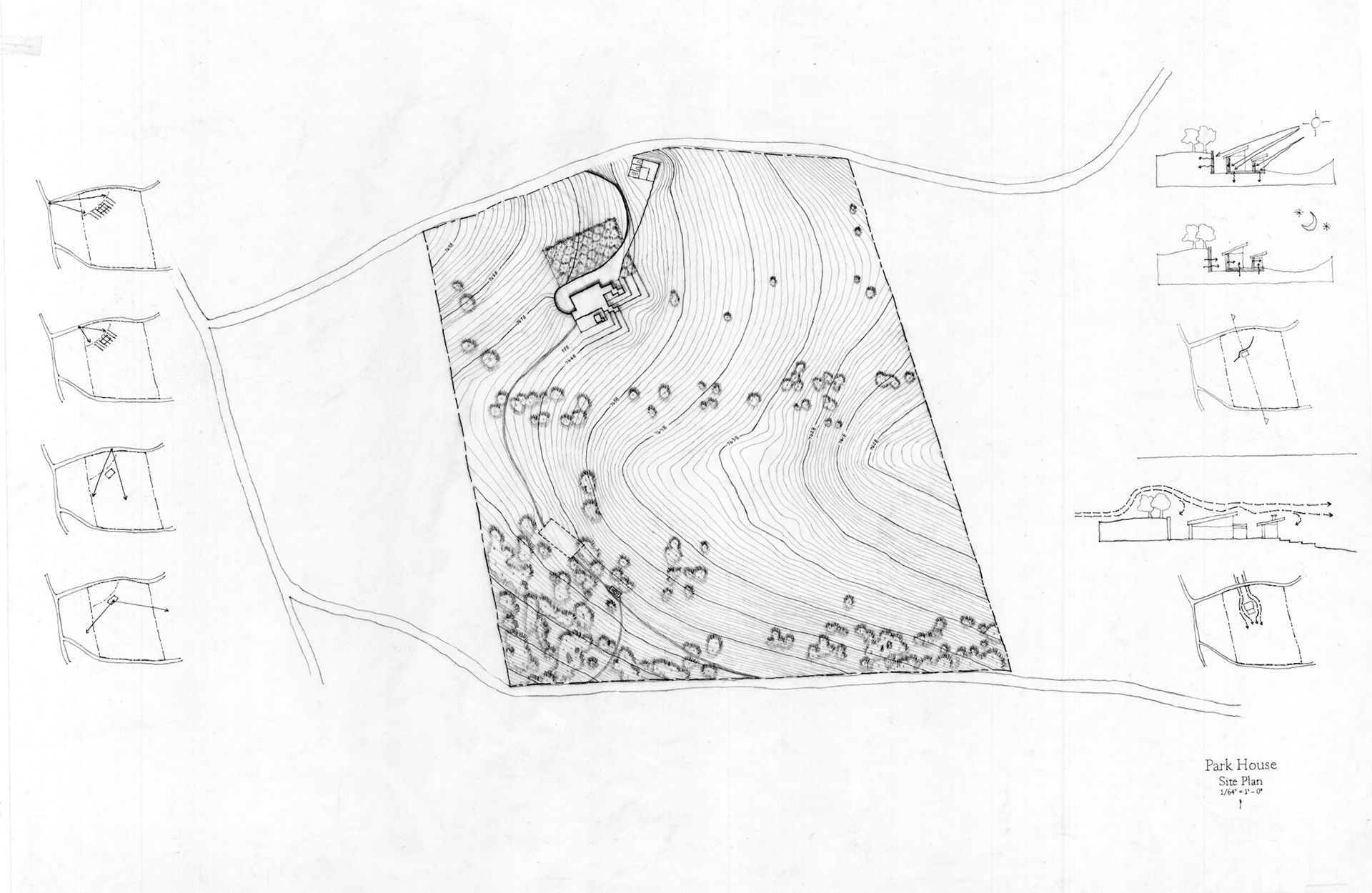

Site plan

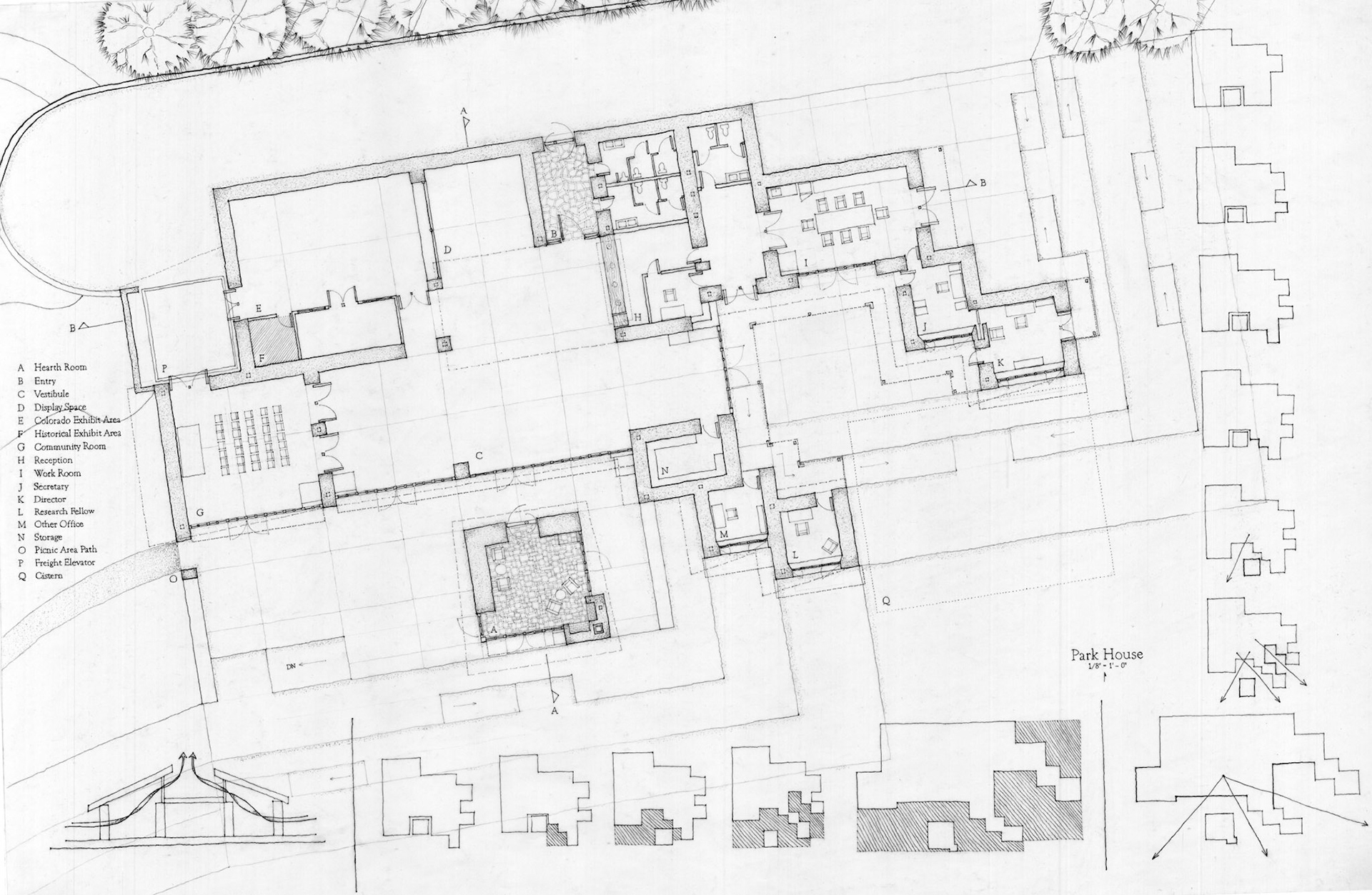

Floor plan

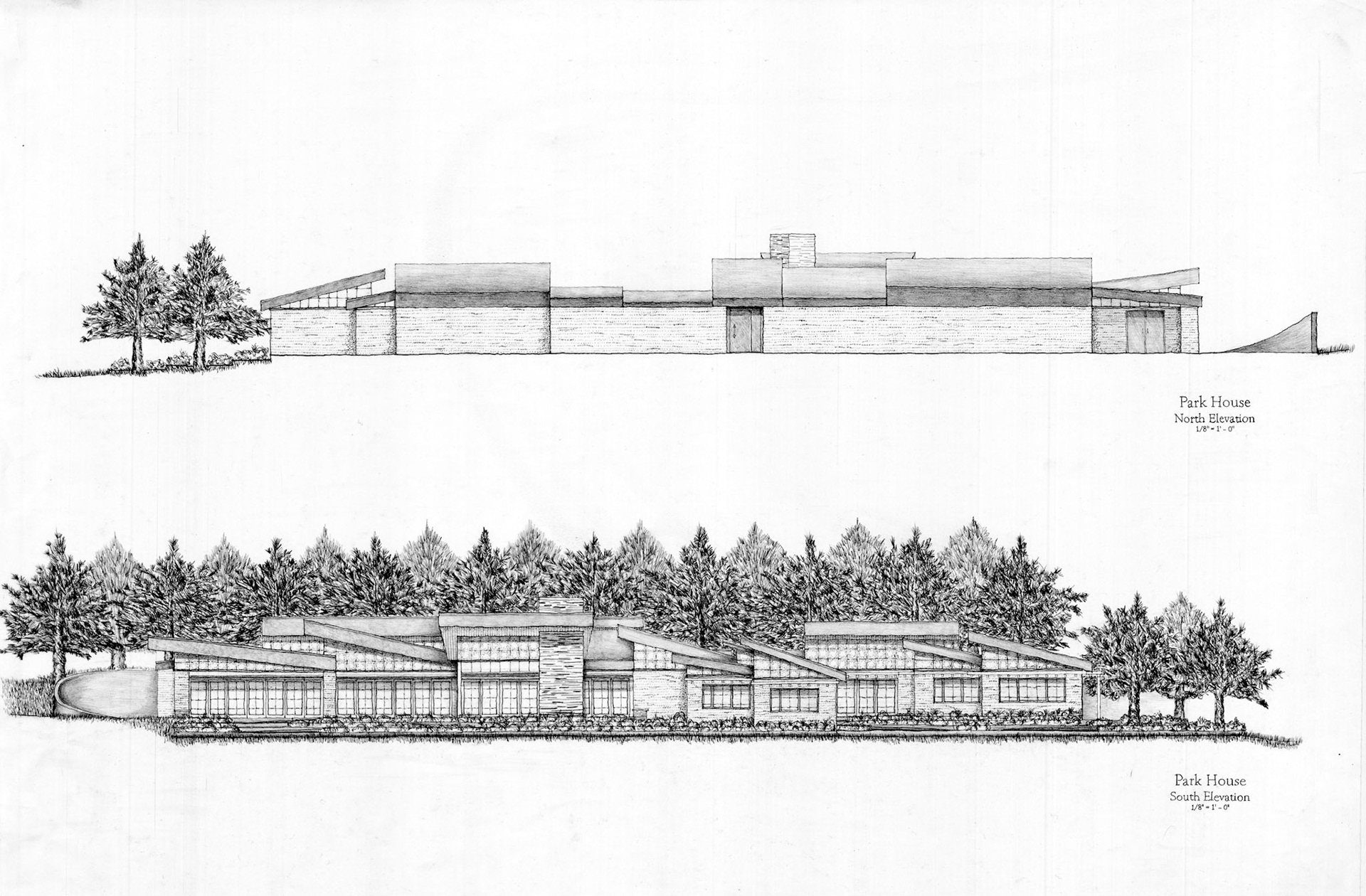

North and south elevations

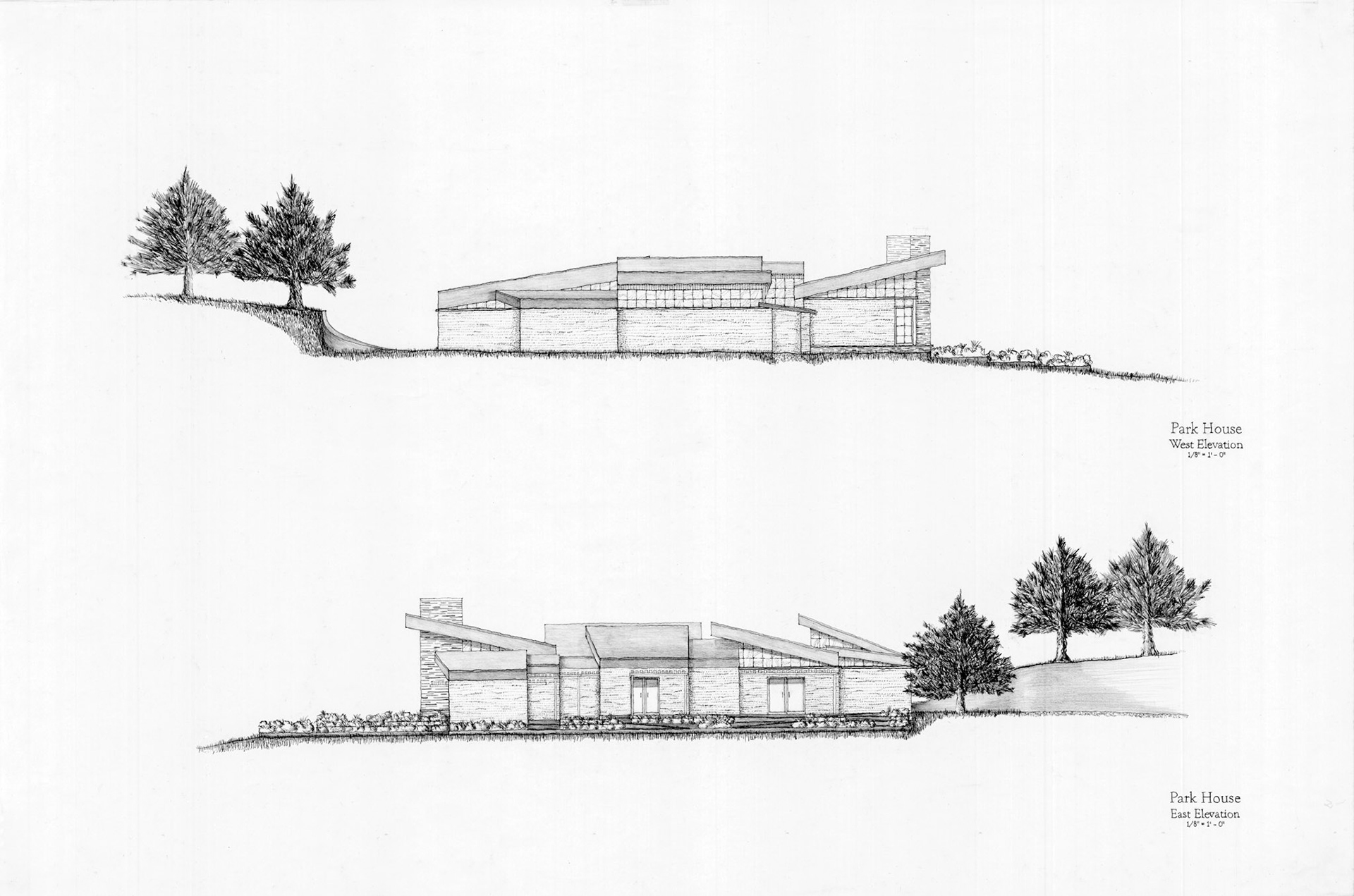

East and west elevations

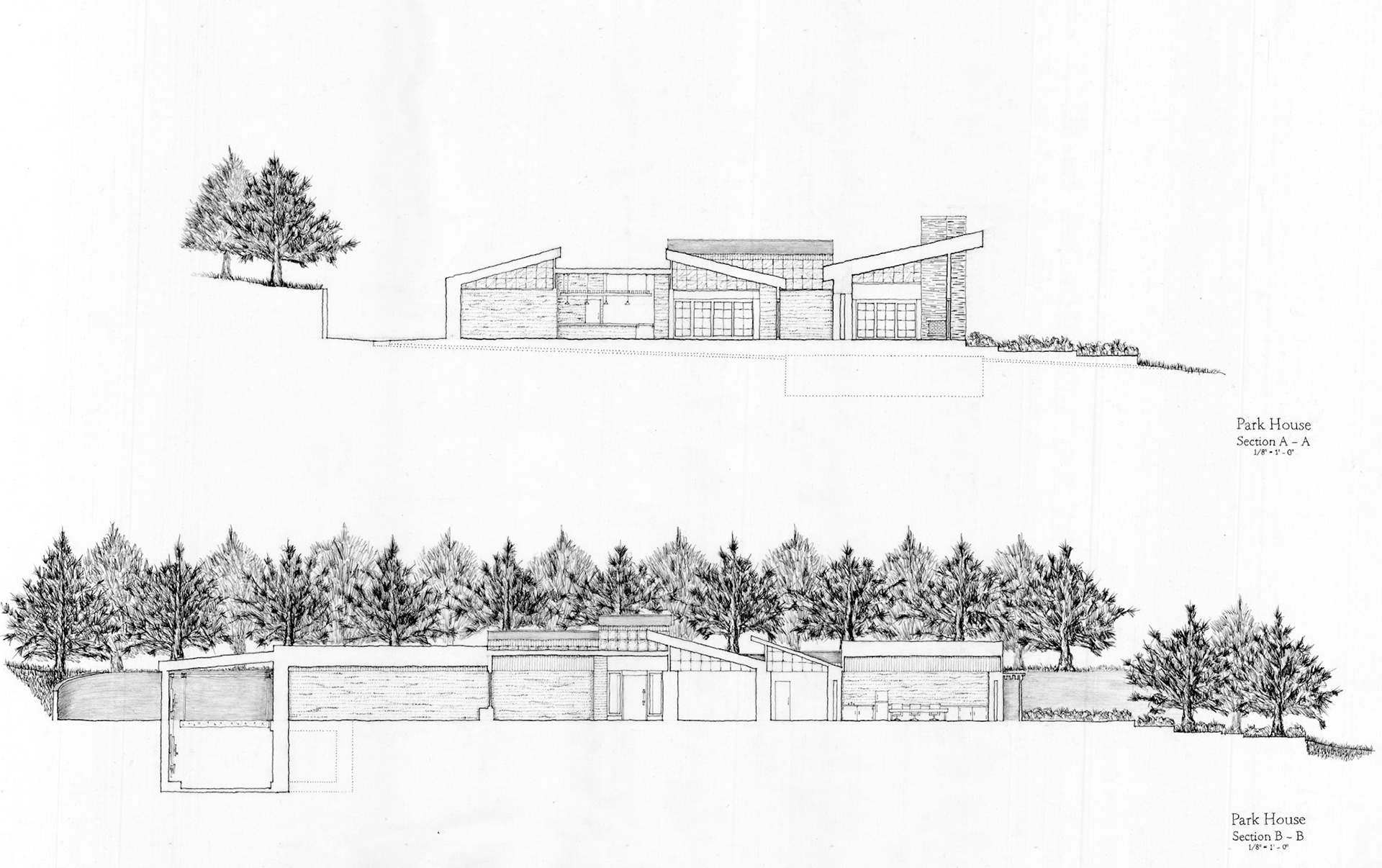

Sections

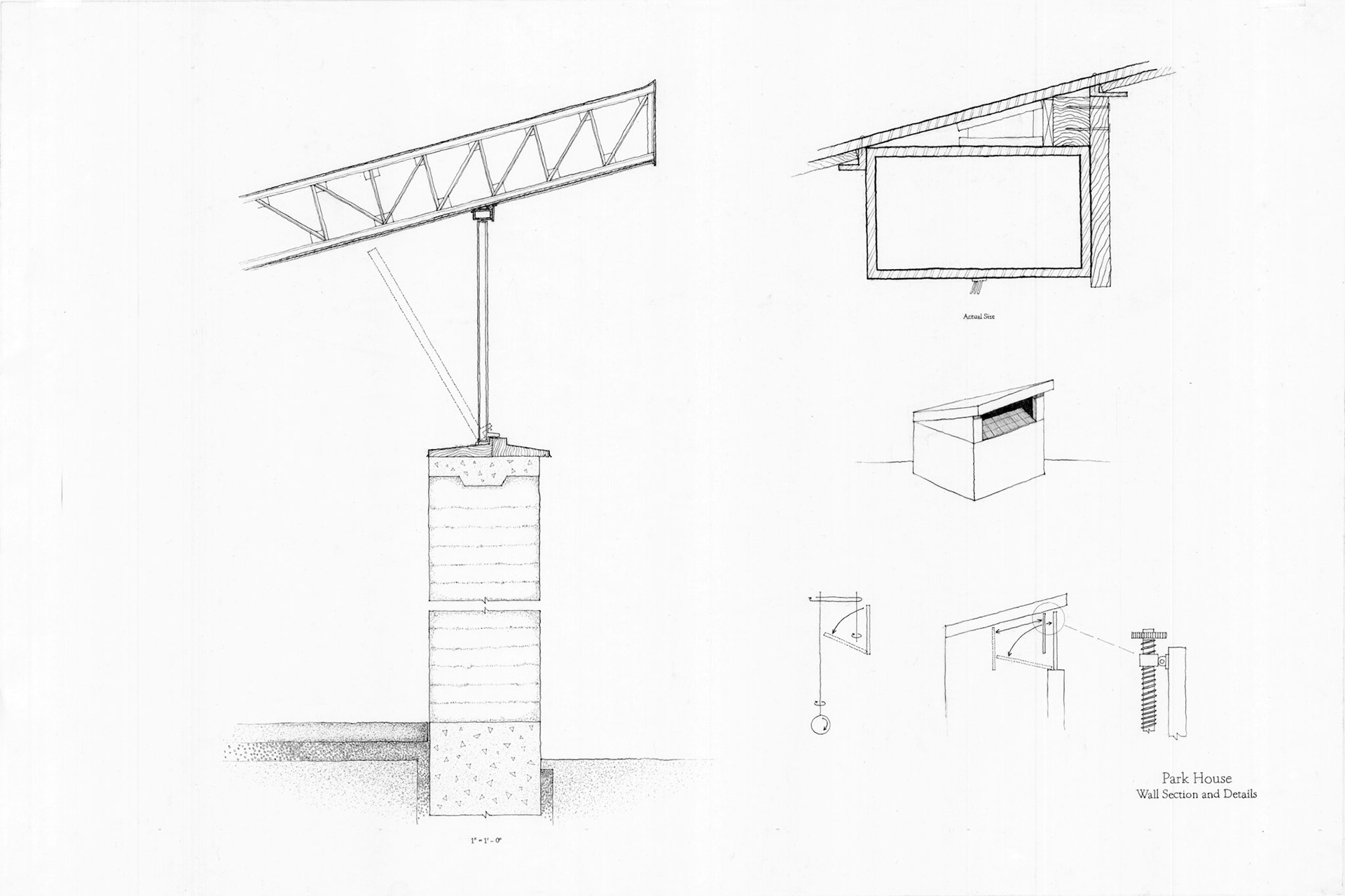

Wall section and window opening mechanism
Hearth alternatives

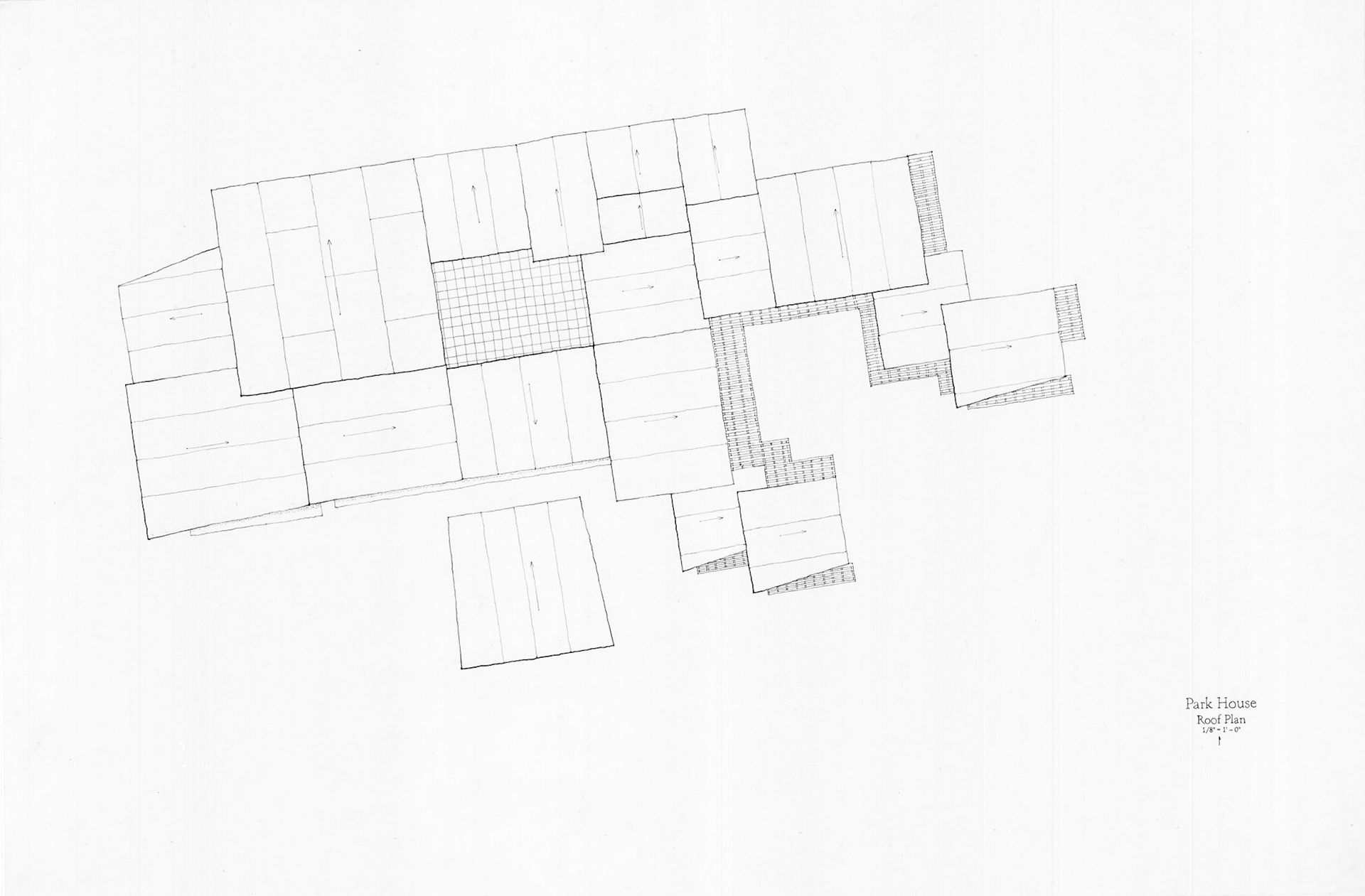

Roof plan
